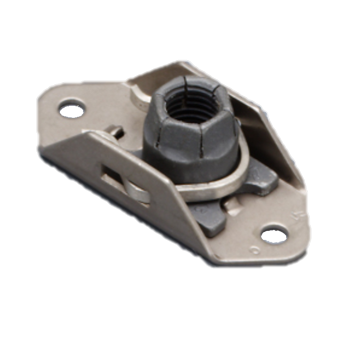

HowmetFlatBeam™ Nutplate, Clip-in, Variable Counterbore, Two Lug, Alloy Steel Nut, CRES Cage, 450° F
Item # |
Size |
Nut Material |
Cage Material |
Replaceable Nut Element |
Lugs |
Domed |
Counterbore |
Configuration 1 |
Radial Float |
Cycle Life |
Minimum Tensile Strength |
Maximum Seating Torque |
Maximum Service Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FBL10082( )3-( ) | Size N/A -3 (.1900) | Nut Material N/A Alloy Steel | Cage Material N/A CRES | Replaceable Nut Element N/A Yes | Lugs N/A Two | Domed N/A No | Counterbore N/A Variable | Configuration 1 N/A | Radial Float N/A 0.030 inches | Cycle Life N/A 250 | Minimum Tensile Strength N/A 2825 lb | Maximum Seating Torque N/A 36.000 lb-in | Maximum Service Temperature N/A 450 °F |
| FBL10082( )4-( ) | Size N/A -4 (.2500) | Nut Material N/A Alloy Steel | Cage Material N/A CRES | Replaceable Nut Element N/A Yes | Lugs N/A Two | Domed N/A No | Counterbore N/A Variable | Configuration 1 N/A | Radial Float N/A 0.030 inches | Cycle Life N/A 250 | Minimum Tensile Strength N/A 5060 lb | Maximum Seating Torque N/A 60.000 lb-in | Maximum Service Temperature N/A 450 °F |
| FBL10082( )5-( ) | Size N/A -5 (.3125) | Nut Material N/A Alloy Steel | Cage Material N/A CRES | Replaceable Nut Element N/A Yes | Lugs N/A Two | Domed N/A No | Counterbore N/A Variable | Configuration 1 N/A | Radial Float N/A 0.030 inches | Cycle Life N/A 250 | Minimum Tensile Strength N/A 7000 lb | Maximum Seating Torque N/A 120.000 lb-in | Maximum Service Temperature N/A 450 °F |
