Series

 N/A CA17088

Receptacle Type

 N/A LiveSert Insert

Material

 N/A CRES

Housing Material

 N/A 18-8 Type 300 CRES per ASTM-A-582

Screw Material

 N/A A286 CRES per AMS5732 to AMS5737

Finish

 N/A Passivate per QQ-P-35

Screw Heat Treat

 N/A 140 000 PSI Min

Thread Size, Class 3A

 N/A 0.1900-32 UNF 4 Lead

Ultimate Tensile Strength

 N/A 3000.000 lb

Single Shear Strength

 N/A 3000 lb

Installation Tool Part Number

 N/A CA1782-T10

N/A

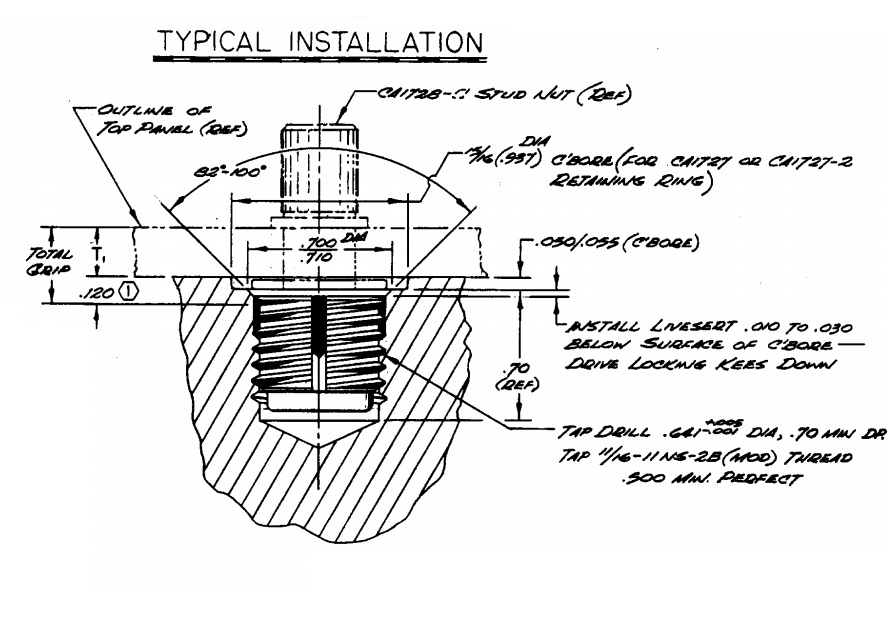

  • Install livesert with CA1782-T10 tool.
  • This livesert is non-floating.
  • <1> When selecting stud nut Dash No., add 0.120 to "T" to obtain proper total grip as shown.
  • <2> This livesert designed for high shear applications - 0.376/0.380 extende to a depth of 0.093 in to provide shear bearing support.
